Beans Skin Peeling Machine for Sales

Generally bean skin peeling machine is mainly used for peeling soybeans, mung beans, kidney beans, black beans, chickpeas, black eye beans, lentils and other beans. It is widely used by bean filling manufacturers, bean processing enterprises and food processing factory. (Read more: Business Plan for Beans Flour Production >>)

Bean Peeling
Bean Peeling

ABC Machinery develops different emery roll and screen pieces for a variety of raw grains to ensure the finished peeling effect and the finished product yield. Our beans peeling & dehulling machine is small in size and efficient in processing. We also can provide design and turnkey service to build bean peeling plant, with capacity of 10~200TPD, If you are interested in grain peeling machine, please contact us for more details. We are happy to provide you the BEST price!

inquire about the price and cost

Bean Peeling Machine Working Principles

BS series beans peeling machine provided by ABC Machinery is a multi-functional grain peeling machine, using emery roll structure to minimize the damage for grain endosperm and ensure the high yield. It is mainly composed of feeding mechanism, propeller, peeling chamber, emery roller, driving mechanism, hopper, discharging device, dust collector and other parts. The bean peeling machine is equipped with 22~37KW motor and the processing capacity can reach up to 1500, 2500, 5000 per hour. (You may also like: maize processing machine >>)

BS Series Bean Peeling Machine Parameters

Model Capacity (kg/h) Emery Roll Diameter (mm) Emery Roll Length (mm) Mainshaft Speed (r/min) Power (kw) Weight (kg) Outline Dimension (mm)
BS-18A 1000~1500 Ø180 660 1300 22 800 1370*700*1900
BS-18B 1000~1500 Ø180 660 1300 22 800 1410*1220*2030
BS-25A 2500~3500 Ø240 660 1050 30 1000 1515*660*2100
BS-25B 2500~3500 Ø240 660 1050 30 1000 1515*1220*2100

BS series bean peeling machine USES a high-speed rotating emery blade to continuously cut and rub the bean cortex, destroy the binding strength of endosperm and epidermis, make the cortex gradually be crushed and rubbed off, and then extracted by the wind transport system, which can effectively remove the legume epidermis. In addition to the collection of skin impurities in the process of peeling, the peeling rate for mung bean peeling is more than 95%, which is the highest standard in the industry. (Read more: Flour Milling Machine Price >>)

Bean Skin Peeling Machine Advantages

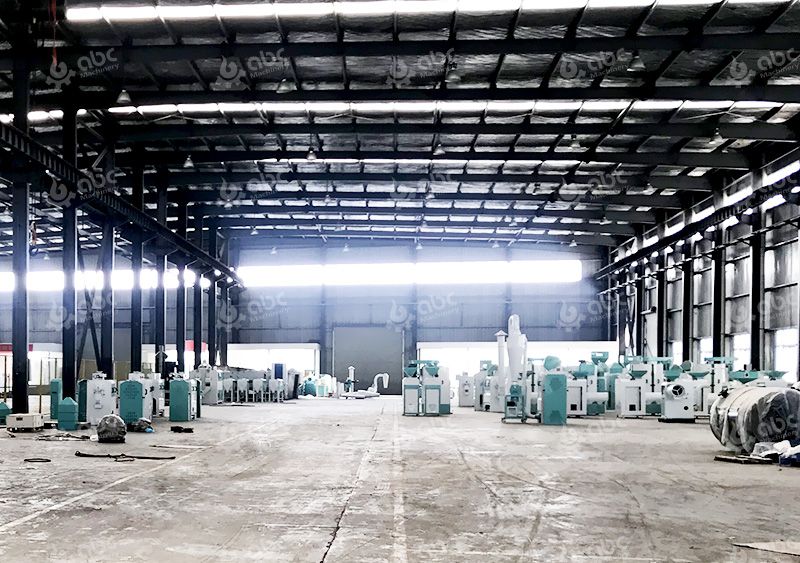

Bean Peeling Machine for Sale
Bean Peeling Machine for Sale

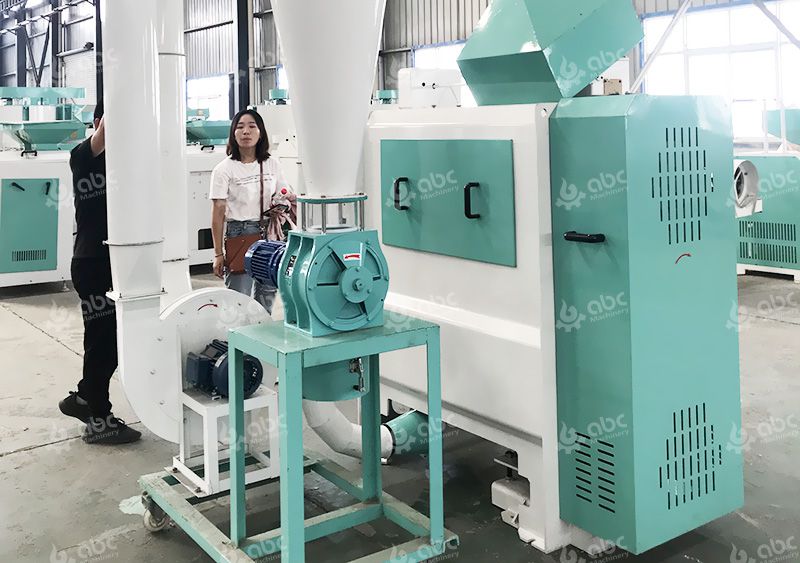

Soya Bean Peeling Machine
Soya Bean Peeling Machine
  • The built-in air suction and dust removal system ensures the best hygienic condition. BS Series lentil processing machine has the efficient air suction system.
  • Easy to maintain and operate, and can be quickly replaced with screen plate and other accessories. Durable emery roller and less wear parts make our bean peeling machine easy to operate and maintain.
  • Uniform and reliable quality of finished products with a variety of adjustment options, even in the operation process can be adjusted -- such as adjusting the feeding speed and outlet pressure controller to increase the friction and pressure of the peeling chamber, so as to achieve a uniform quality.
  • The bean peeling process adopts dry method to remove the skin, so the grains won’t touch water, which can ensure the sanitary process.



Lentil Peeling Machine Processing Video

Due to various models of bean peeling machine, if you are truly interested in our equipment, please contact us directly to get the FREE quotation, machine parameters and beans peeling videos!

Russia Clients Buy Our Small Lentil Peeling Machine

Recently, our Russia clients visited our factory and inspected and tested the BS-25B lentil peeling machine he brought. Below is a few details about this factory visit.

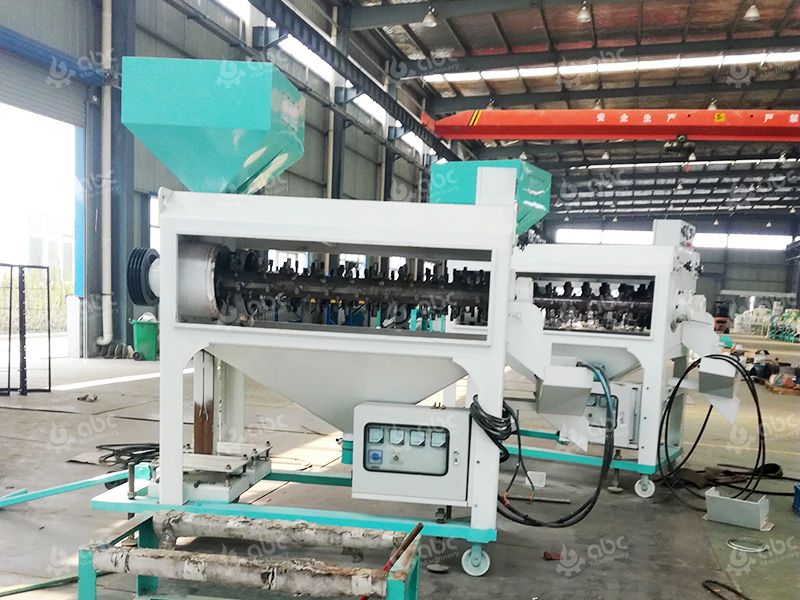

Lentil Peeling Machine
Lentil Peeling Machine

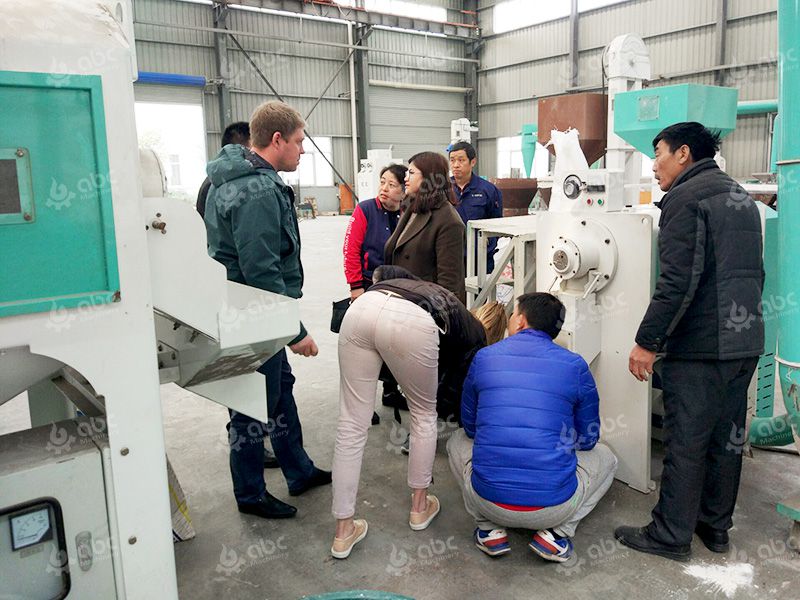

Lentil Processing Machine Peeling Test
Lentil Processing Machine Peeling Test

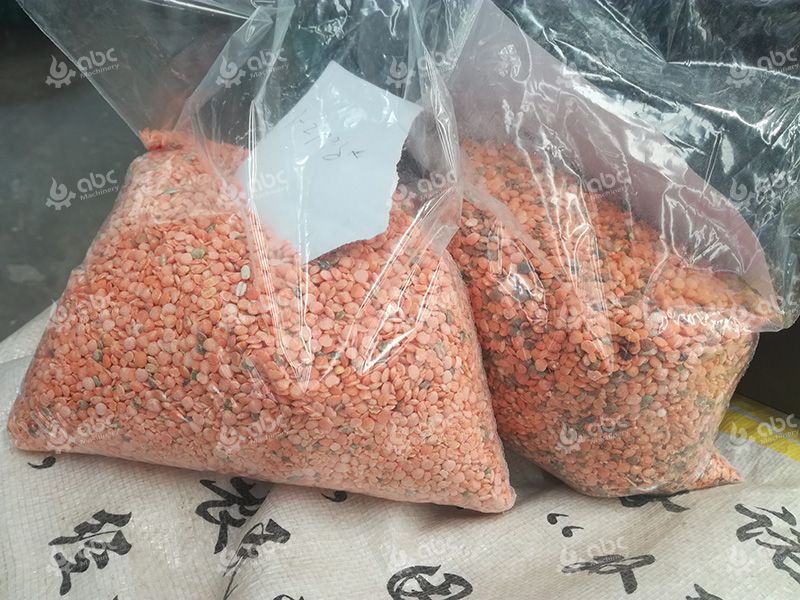

Lentil Skin

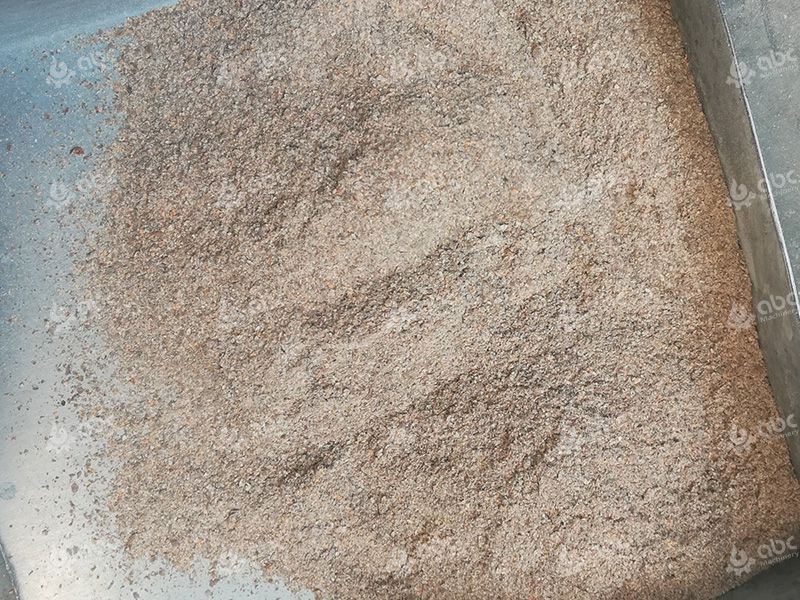

Raw Material Lentil
Raw Material Lentil
Lentil Skin

ABC Machinery devotes to providing customers the BEST equipment at facotry price! We welcome customers from different countries to visit our factory and find out their expected equipment for their business. Any questions, please contact us without hesitation!
