bean peeling plant

The bean peeling plant can be used to dehull soybean, lentil, black-eye bean, kidney bean, broad bean, mung bean, pea, chickpea, etc. It is composed by 2 sieves, 2 destoners, 2 air classification, 2 magnetic selectors, 2 dehullers, 1 brusher, 1 color sorter and 1 grading machine. All the machines in this peeling plant can be removed or add more other equipments according to your requirement. Besides, oil or water can be utilized to increase the glossiness of bean surface.

General capacity: 10T/D, 20T/D, 40T/D, 50T/D, 80T/D, 100T/D, 200T/D, 500T/D

Bean peeling process

Beans cleaning— beans dehulling— beans polishing— color sorting—grading— packing

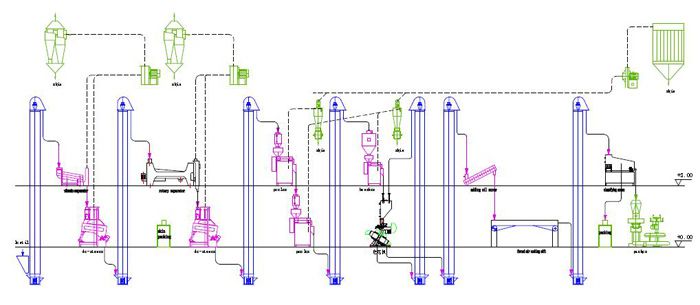

Flow sheet
bean peeling plant flow sheet

About bean dehuller

To achieve the purpose of peeling, the bean huller works its way by using a high-speed rotation of the emery flute to cut and frict the beans peel or corn cortex continuously, damage the bonding strength of the beans peel or maize endosperm and embryo, so that beans peel or corn cortex is gradually wiped away. It is mainly used in the deep processing of beans and corns, which enhances the quality and consumption of beans and corn products, also improving the comprehensive utilization value of beans and corn products. This machine is suitable for medium and small scale food processing plant or corn deep processing.

6FTP-150 deHuller:
TECHNICAL PARAMETER:
Type Capacity Power Weight Size
(KG/H) (KW) (KG) (MM)
6FTP-150G Corn 500~1000 11 350 1260x1280x1700
Bean 700~1000
Sorghum 500~700
6FTP-150GW Corn 500~1000 11 310 1260x560x1700


6FTP-600 Multifunctional high-efficient dehuller:
TECHNICAL PARAMETER:
Type Capacity Power Weight Size
(T/H) (KW) (KG) (MM)
6FTP-600D Corn 1200~2000 22-22.75 350 1100x1340x1750
Bean 1000~2000
Sorghum 1000~2000
6FTP-600AW Corn 1500~2500 18.5 350 1100x620x1750
6FTP-600BW Corn 1000~1800 18.5 350 1100x620x1750


6FTP-1000 Multifunctional high-efficient dehuller:
TECHNICAL PARAMETER:
Type
Capacity


Power Weight Size
(KG/H) (KW) (KG) (MM)
6FTP-1000G Corn 2000~3200 37-37.25 550 1550x1400x1800
Bean 2000~2500
Sorghum 2000~2500
6FTP-1000GW Corn 2000~2500 37 550 1550x700x1800
6FTP-1000AW Corn 2500~3500 37(30) 550 1550x700x1800
6FTP-1000T Corn 3500~4000 37(30) 550 1550x700x1800

Project show

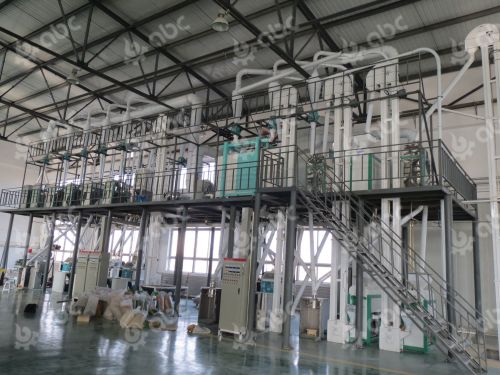

This is a 100TPD soybean process line we set up in South Africa which includes soybean cleaning, dehulling, flour milling, and package.
100tpd bean peeling plant

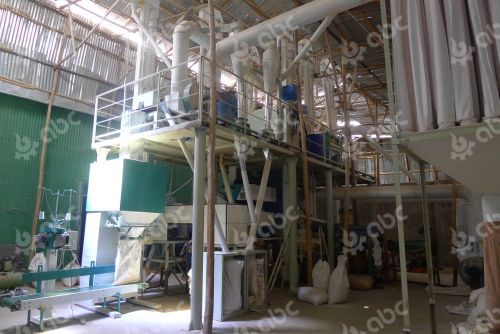

This is a 20TPD lentil project we set up in Addis Ababa, Ethiopia which includes lentil cleaning, dehulling, polishing, color sorting, and package.
20tpd bean peeling plant
