Storage Silo

The storage silo is used to store bulk materials such as grains (wheat, maize, etc.), flour, and also cereal feed in agriculture.

Applicable area:

Flour mill plant, grain processing plant, oil & fats plant, animal feed plant, cements storage, water treatment, etc.

Capacity: 5-10000T/silo

Features

  1. The silo wall sheets are galvanizing boards;
  2. The sheets are connected by common or high strength bolts;
  3. The thickness of silo wall is designed according to swelling tension;
  4. The external vertical stiffeners can afford vertical friction;
  5. The cutting face is in Z shape;
  6. It adopts radial beam silo roof support system.


Flour mill plant storage silo composition

  • The hopper is made up of heeling, ring beam, conical plate, lacing wire, etc.
  • Heeling is made from H shaped steel to improve the steel structure’s safety and reliability.
  • The ring beam is made from channel steel by compressing, which is used to support silo, connect heeling and conical plate.
  • Conical plate is full assembly, the feature of which is erected well, beautiful, useful, safe and reliable.
  • The main parts of the silo bin and roof are made of galvanizing board or spares

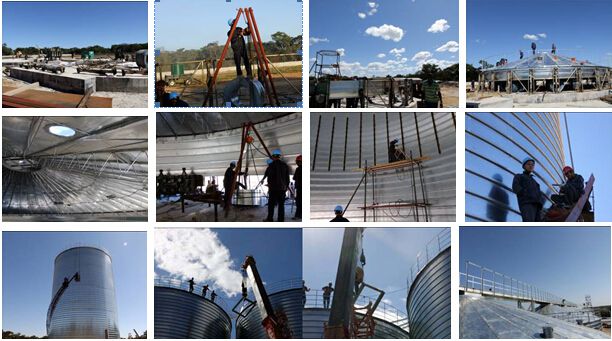

Below are the pictures of storage silo in flour mill plants built by ABC Machinery
storage silo

Storage silo for 100t cornflour mill plant Storage silo in 160t wheat flour plant New Zealand
storage silo for 100t corn flour mill plant storage silo in 160t wheat flour plant New Zealand
