flour milling equipment

To set up a flour mill plant for wheat, corn/maize or other grains, the flour milling equipment is indispensable and is also the main cost of a flour processing plant. Below is the main flour milling machine provided by ABC Machinery. All of them are built with premium quality materials and has durable and efficient performance.

Commercial Flour Milling Business
Commercial Flour Milling Business

 According to different production capacity, they can be purchased for small business or large commercial purpose. If you are now looking for grain flour processing machinery, just check our equipment, you are very welcomed to contact us for detailed price list!

Pneumatic Controlling Roller Flour Mill

The FMFQ series pneumatic controlling flour milling equipment is designed with steel material upper and cast iron base bottom parts. Its feeding system adopts modularization, which can be moved out completely for maintenance. The feeding system can also be driven separately for roller distance adjustment and the roller is highly sensitive for adjustment. The bottom parts can be custom-made according to customer requirements: electrical controlling set, pneumatic controlling set, four roller mill and eight roller mills with roller diameters of 250mm, 300mm, etc.

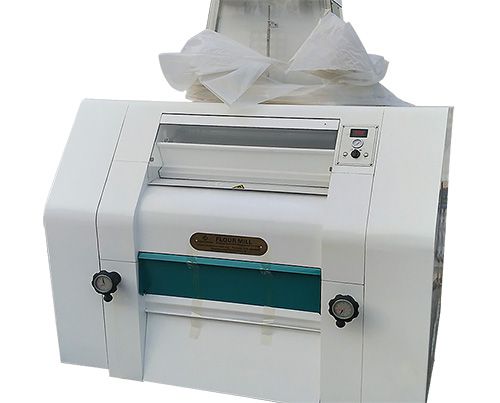

Pneumatic Controlling Flour Milling Equipment

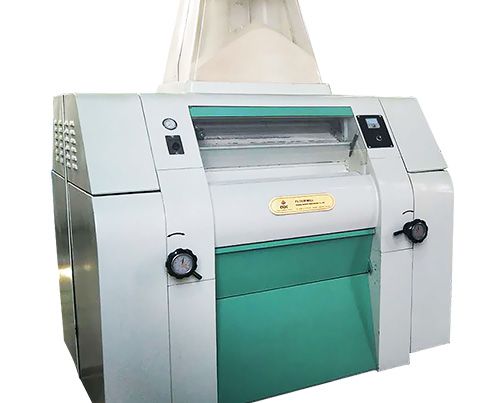

Large Wheat Flour Milling Machine

FMFQ Series Roller Flour Mill is The Core Machine in Wheat Flour Mill Plant Which Production Capacity is 50tpd and above.

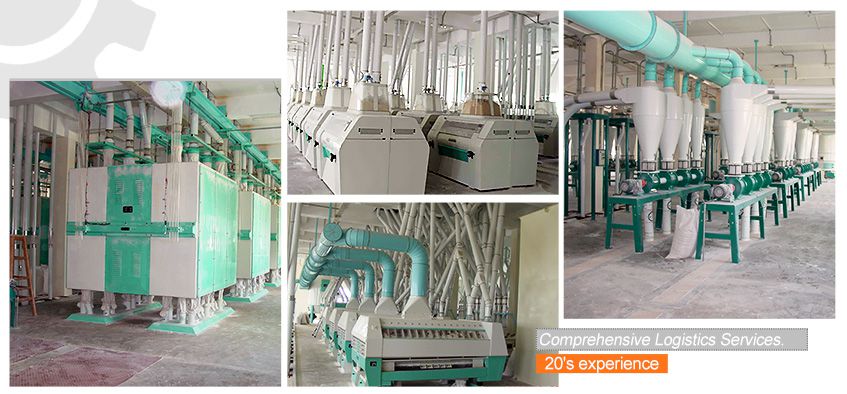

Large Automatic Flour Mill Plant
Large Automatic Flour Mill Plant

We have built commercial wheat flour mill plant projects that was designed with pneumatic flour mill in many countries, including 160TPD Wheat Flour Mill Plant Setup in New Zealand, 160TPD Automatic Wheat Flour Mill Plant in Argentina, etc.. Contact us to get the project report on wheat flour processing and the setup cost of commercial wheat flour mill!

inquire about the price and cost

Technical Data of Large Roller Flour Milling Machine

Model Roller Spec
(diameter*length)
Distance between milling and feeding roller Speed radio of feeding and milling rollers Speed of feeding and rolling rollers Speed of feeding roller Feed roller type Working pressure of cylinder Motor capacity rollers
FMFQ10×2A 250×1000mm 250mm








1.25:1~2.5:1
450~550r/min








60~260r/min









Double roller
0.6~0.7MPa 22kW
FMFQJ10×2 250×1000mm 250mm 450~550r/min 0.6~0.7MPa 22kW
FMFD10×2 250×1000mm 250mm 450~550r/min   22kW
FMFQ(3)10×2 300×1000mm 300mm 400~500r/min 0.6~0.7MPa 30kW
FMFQJ(3)10×2 300×1000mm 300mm 400~500r/min 0.6~0.7MPa 30kW
FMFD(3)10×2 300×1000mm 300mm 400~500r/min   30kW
FMFQ10×4 250×1000mm 250mm 450~550r/min 0.6~0.7MPa 22kW
FMFQ8×2 250×800mm 250mm 450~550r/min 0.6~0.7MPa 22kW
FMFQJ8×2 250×800mm 250mm 450~550r/min 0.6~0.7MPa 22kW
FMFQJ6×2 250×600mm 250mm 450~550r/min 0.6~0.7MPa 22kW
FMFQ12.5×2 300×1250mm 300mm 400~500r/min 0.6~0.7MPa 30kW
FMFD12.5×2 300×1250mm 300mm 400~500r/min   30kW
FMFQJ12.5×2 300×1250mm 300mm 400~500r/min 0.6~0.7MPa 30kW
FMFQ12.5×4 300×1250mm 300mm 400~500r/min 0.6~0.7MPa 30kW

FMFG Series Flour Mill Grinder

The FMFG series flour milling machines adopt the latest technology with brand new construction and perfect performance. It can be used to process various grains into flour or starch flour, including wheat, maize, cassava, etc..

Medium Size Flour Milling Machinery
Medium Size Flour Milling Machinery

FMFG Series Grain Milling Equiment is Best for Middle Scale Flour Mill Plant that has a Capacity of 40TPD~80TPD.

The rollers have high rotation precision, accurate roller distance adjustment and feeding, as well as flexible feeding method. This series flour mill grinder also has low noise, no vibration, and no environment pollution. (Related Project: 60TPD Wheat Flour Milling Project in Algeria >>)

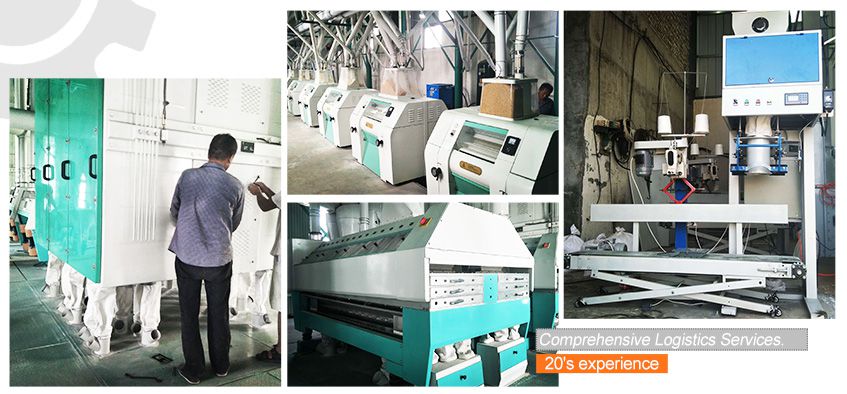

Setup Medium Flour Mill Project
Setup Medium Flour Mill Project

Technical Data of FMFG Series Flour Mill Grinder

Model Diameter for Feeding Roller Power Weight Size L×W×H
FMFG4×2 2×∮74 mm 4-11 kw 1310 kg 1200×1490×1700 mm
FMFG5×2 2×∮74 mm 4-15 kw 1680 kg 1300×1490×1700 mm
FMFG6×2 2×∮74 mm 4-18.5 kw 2000 kg 1400×1490×1700 mm
 how to start your own production line with best business plan

6F Series Flour Mill Machine

6F series flour mill machine is a kind of one-side inclining small scale flour mill. It adopts rolling bearing with low friction, low energy consumption and high efficiency. The compact structure and easy operation makes it fit for single use or used in joint flour processing unit. This flour milling equipment is mainly used for processing raw materials as wheat, maize, buckwheat, broomcorn, etc. (Read more: Corn/Maize Grits Processing Plant >>)

Small Flour Mill Machine
Small Flour Milling Machine

This Type of Flour Milling Machine is Usually Adopted in Small and Medium Wheat or Maize Flour Production Line from 10~80TPD.

Technical Data of 6F Series Flour Mill Machinery

Item Spec.
2235 2240 2250 2540 2550 2560
Roller Diameter 220 mm 220 mm 220 mm 250 mm 250 mm 250 mm
Roller Length 350 mm 400 mm 500 mm 400 mm 500 mm 600 mm
Motor Power 3-11 kw 4-15 kw 4-15 kw 5.5-15 kw 5.5-18.5 kw 5.5-18.5 kw
Speed radio of feeding and milling rollers 2.5:1  2:1 2.5:1  2:1 2.5:1  2:1 2.5:1  1.25:1 2.5:1  1.25:1 2.5:1  1.25:1
Weight 480 kg 500 kg 540 kg 850 kg 870 kg 1000 kg
Size (L*W*H) 900×600×620 mm 950×600×620 mm 1000×600×680 mm 1100×640×680 mm 1200×640×680 mm 1300×640×680 mm

The wide application and high efficiency makes 6F series flour mill the BEST choice for wheat and maize flour processing plant. It is well recognized by our customers who have bought it for their startup business:
► 30TPD Wheat Flour Mill Project in Chile
► 50Tpd Maize Flour Plant in Zambia

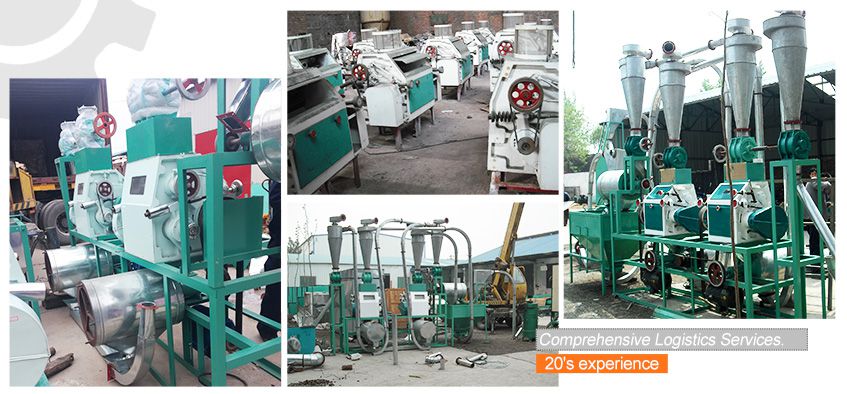

Flour Mill Machinery for Sale
Flour Mill Machinery for Sale

inquire about the price and cost

BEST Manufacturer of Complete Set of Flour Milling Machines

Grain flour milling machinery for flour mill plant setup – Buy high quality flour milling equipment for commercial flour milling: HOT sale flour milling machine offered by flour mill machinery manufacturer or supplier, guide on process of grain flour production and how to start flour milling business with limited cost in Tanzania, Egypt, Morocco, Ghana, South Korea, etc.

Other Grain Processing Machinery Used in Flour Mill

In addition to flour milling machine, the complete flour mill plant also includes other grain processing equipment, like grain cleaning equipment, high plan sifter, purifier, bran finisher, impact detacher, packaging machine, etc.. ABC Machinery, as a large grain processing machinery manufacturer and supplier, we can provided the complete set of wheat flour production machine, maize flour milling equipment, etc. If you are interested to know more, send us your requirements, raw materials, budget and other details, we will send you the customized plan to help you build an efficient flour mill pant for business!



  • Impact detacher

fsjz Impact DetacherFSFZ series impact detacher is auxiliary equipment for flour mill. It is used to hit the materials from core mills and slag mills and to make them loose or separate germ from grain peel. By this hitting process, the extraction rate of flour can be higher. The compact and brief design makes this impact detacher easy to install and place saving.





Model Capacity Roller Diameter Roller Speed Power Size (L*W*H)
FSFZ43 1-2 t/h Φ430 mm 2960 n/min 3 kw 670×550×570 mm
1.5-2.3 t/h 4 kw
FSFZ51 2-2.3 t/h Φ510 mm 2960 n/min 5.5 kw 770×660×635 mm
  • Bran Finisher

Bran Finisher for Flour ProcessingMaterial in the high-speed rotating adjustable playing board belows, bran flakes are thrown to the bumper and flexible screen, through many times by the playing board, flour will be separated from the bran flakes, then the flour will be drop to the discharge hopper through the screen, thus you can get high quality bran. Bran finisher can improve the efficiency of grinding and increase the flour extraction rate.




Model Screen Cylinder Specification Distance between Play Board and Screen Cylinder Main Roller Speed Power Capacity Air
Diameter Length
FPDW30*1 300 mm 800 mm ≥9 mm 1050 r/min 2.2 kw 0.9~1.0 t/h 7 m3/min
FPDW30*2 300 mm 800 mm ≥9 mm 1050 r/min 2.2*2 kw 1.8~2.0 t/h 2*7 m3/min
FPDW45*1 450 mm 1100 mm ≥9 mm 1050 r/min 5.5 kw 1.3~1.5 t/h 7 m3/min
FPDW45*2 450 mm 100 mm ≥9 mm 1050 r/min 5.5*2 kw 2.6~3.0 t/h 2*7 m3/min
