Mini Wheat Flour Mill Plant

ABC Machinery is a large-scale manufacturing enterprise specializing in the export of grain milling equipment, providing integrating design, equipment manufacturing, installation, commissioning, and after-sales service. Recently, a 1TPH Mini Wheat Flour Mill Plant was ordered by a customer from America and the machine has been sucessfully delivered to America. (Related Post: Cost of Setting up a Flour Mill >>)

Wheat Flour Mill Plant for Sale
Wheat Flour Mill Plant for Sale

1TPH Mini Wheat Flour Mill Plant to America

This customer bought this mini flour mill plant for sale. It will use to process wheat and produce high quality wheat flour. The details of this mini wheat flour milling machine includes two FC-40 mini flour mill machine.The detailed parameters of this mini wheat flour mill plant is as below.

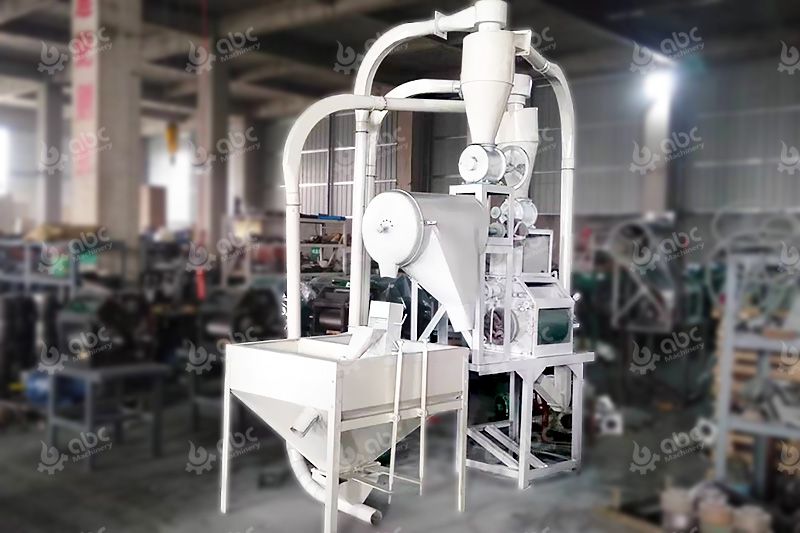

Mini Wheat Flour Mill Plant
Mini Wheat Flour Mill Plant

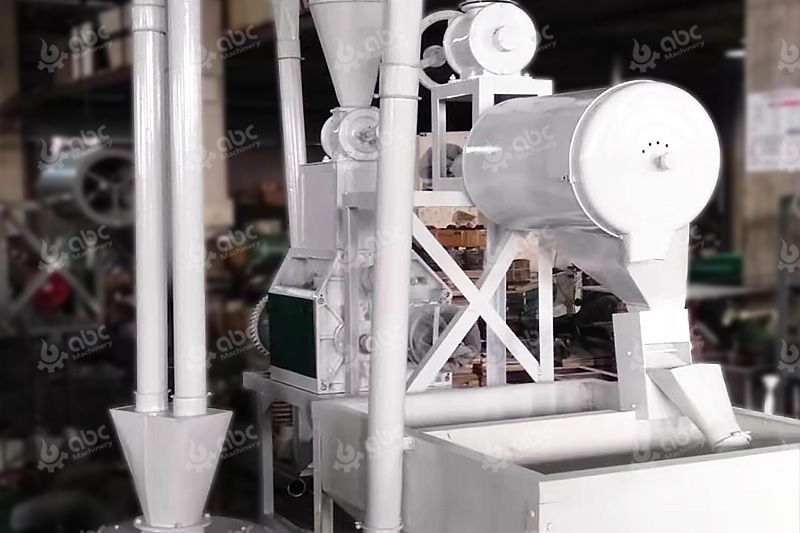

1tph Wheat Flour Mill Machine to America
1tph Wheat Flour Mill Machine to America

1TPH Mini Flour Mill Plant Technical Data

Machine Capacity Quantity Power Overall Dimension
FC-40 Flour Mill 400-450kg/h 2 sets ~~ ~~

1TPH Mini Wheat Flour Mill Machine Working Video


This mini flour milling machinery is more advanced than the traditional single flour mill machine in the production process, and the production efficiency and product quality can be rapidly improved, which makes it the ideal small flour making machine in the rural and township. It is also the ideal chioce to start flour mill business due ot its low cost and full functions. It is popular in India, Kenya, Nigeria, Pakistan, Algeria, etc.. If you are interested in our 1TPH mini wheat flour milling plant, please contact us to get the latest price!



inquire about the price and cost

Mini Flour Mill Plant Advantages

Our mini flour mill unit adopts the pneumatic transmission, the raw material is elevated by negative pressure and use the cyclone to separate the raw material and the pressure. It is made up by aspiration system, separation system, stock bin and OS, which makes it easy to operate and has compact structure. It has many advantages in the actual grain flour production, including:

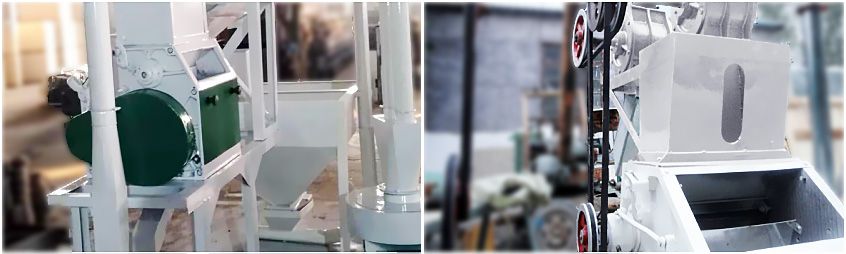

Mini Flour Mill Plants
Mini Flour Mill Plants

  • Improving mechanization and lowering labor
  • Adopting pneumatic transmission that is sealed and proving flour running out
  • Lower flour temperature and more than once processing guarantee the quality of final flour

This Mini Wheat Flour Milling Plant is our best-selling small scale flour mill. It is partically favored by many farms and farmers. ABC Machinery provides a complete quotation and turnkey service according to the customer's specific requirements and investment budget. You only need a piece of land to build a shed to protect the wheat flour mill plant from rain and heat, and we will do the rest! We can provide full service to save your money, time and energy! If you have needs, don't hesitate, please contact us!

Mini Wheat Flour Milling Process

The complete wheat flour production process of mini wheat flour mill plant consists of cleaning and flour milling.
Mini Wheat Flour Milling Process
Mini Wheat Flour Milling Process
  • Raw Materials Cleaning Stage

Wheat enters the cleaning sieve through the hopper to remove stones and impurities to become net wheat. Enter the spiral agitator. Stir and wash with water to remove the dust and microorganisms on the surface of the wheat, and then store it in the moist silo for 12 to 24 hours to increase the moisture, toughness of the wheat skin, the wheat whiteness and quality grade, reduce the breakage.

  • Flour Milling Stage

With the help of a high-pressure centrifugal fan, the clean wheat passes through the third feeder into the state of milling. Two pairs of roller mills process one skin at the same time. The milled bran powder mixture is lifted from the wind net to the air sieve. The flour is blown into the powder collector. Grinding and powdering. All the flour sifted from the wind sieve is sent to the powder collector and separated by the cyclone separator to obtain flour. The dusty air is filtered through the cloth cylinder, and the clean air is discharged out of the machine, without polluting the environment and reducing flour loss. The sifted bran is brushed out of unsifted flour by a bran brushing machine. The bran is stored as a by-product and used as feed.

ABC Machinery has been in flour milling industry for many years. In these years, we have helped our customers to set up flour mill project in many countries around the world. The quality of our equipment, the considerate service and low cost we provided make ABC Machinery a reputable brand of flour mill machinery. If you have needs in wheat flour mill business plan and flour mill machinery, please send us your detailed requirements and estimated budget, so we can offer you the customized plan to start your flour milling business by setting up flour milling plant at low cost to earn profits!
