Turnkey Corn Flour Milling Project — From Design To Installation

Turnkey Corn Flour Milling Project Design and Installation

Overall Planning And Process Design For Corn Flour Mill Project

The project initiates with the vision of a corn mill investment focusing on a clear production target—typically a capacity of 50 tons/day or 150 tons/month for mid-sized plants. From the outset, the project must define goals such as “produce X tons of 12 % moisture corn flour per day with an extraction rate of at least 72 % and energy consumption under 30 kWh/ton”.

Corn Milling Process Flow And Material Movement

For the corn flour mill process design, a typical dry-milling route includes kernel cleaning (removing 2–5 % impurities), de-germination (removing ~10 % mass), roller milling and plansifting. According to industry sources, modern systems begin by defining a flow chart that shows each machine, direction, and quantity of material. The layout must be optimized so materials move logically through clean->degerm > grind > sieve with minimal back-flow and a target grain travel distance under 30 m to reduce internal conveying cost.

Corn Flour Mill Plant Layout And Automation

The plant layout must reflect corn milling plant layout optimization. For example, define a U-shaped production line with storage → cleaning → degerminator → roller-mill section → sifting → packaging. Automating the handling (conveyors, aspiration systems) can reduce labour by ~25 % and energy consumption by ~10 %. In one machine brochure, the roller mill with direct aspiration achieved dust-free operation and consistent grinding quality.

Technology Integration And Energy Efficiency Tips in the Corn Mills

Key measures: Include variable speed drives for the degerminator and roller mills—allowing ±15 % speed flexibility to match corn moisture variations.
Use PLC automation with remote monitoring: expected uptime target 92 % or higher in first 12 months. Ensure extraction rate above 70 % and energy consumption below 28 kWh/ton by design. Industry average for large maize-flour plants: 50 TPD at ~$50,000 equipment cost baseline.

Additional list of key design tasks:

• Raw material intake design: allocate at least two hoppers for 100 ton storage each.
• Material flow control: implement inline weighing at each section to maintain mass balance ±2 %.
• Waste management: design bran/degerm collection with aspiration extraction ≥ 99 %.

Partner with us to develop your turnkey corn flour mill strategy and achieve optimized layout and process integration.

Core Corn Mill Machines Selection And Configuration Strategy in Factory

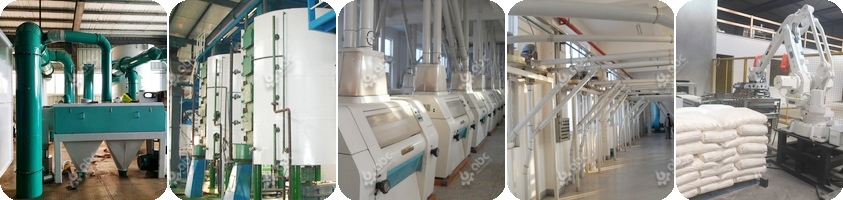

Core Machines in Corn Mill Plant: Cleaners, Degerminators, Roller Mills and Plansifters, Packaging machine

In this section, we focus on the corn milling equipment selection and configuration best practices for a competitive plant. Equipment list typically includes cleaners, degerminators, roller mills and plansifters, tailored to capacity. When selecting, ensure each major module supports capacity scalability from, say, 30 tph to 100 tph.

Key Corn Mill Machine Types

• Cleaner: Should handle 100 % capacity with 3–5 % reject removal and 2–3 % moisture adjust.
• Degerminator: Typical removal of 8–12 % of kernel mass (germ + bran) while preserving 1 % starch loss.
• Roller mill: For large scale, choose double-stage or triple-stage with roll packs. The brochure from a major supplier shows dedicated machines for soft/medium/hard corn varieties.
• Plansifter: Mesh area sized to meet throughput; ensure sifting loss below 0.5 %.

Matching Capacity With Equipment Specs

Choosing right sized equipment is crucial: For a 100 ton/day plant, you might require a roller mill pack of 1200 mm diameter, motor rated at ~200 kW, and plansifter with 80 m² screen area. The configuration should consider spare capacity (≈10 %) for maintenance downtime. Monitor metrics such as grinding ratio (roller mill) less than 1.3 and sieve oversize less than 5 %.

Integration And Maintenance Considerations

Select equipment sets with standardized modules to facilitate maintenance interchangeability and spare parts commonality. Focus on ease of cleaning (to meet hygienic design), minimal downtime (target < 8 hours/year for major repair) and modular conveying so future expansion (e.g., +30 % capacity) is feasible without full line replacement.

Contact our engineering team to tailor your corn flour plant machinery list and support configuration for high throughput and low downtime.

Corn Flour Mill Project Report Structure And Cost-Benefit Analysis

A robust corn flour mill project cost analysis and feasibility section is essential for investors and decision-makers. The structure of the corn milling feasibility report should include executive summary, market analysis, production plan, cost breakdown, ROI calculation and risk assessment.

Typical cost components include:

• Equipment investment: For large-scale plants (50+ TPD) equipment can range from US$500,000 upward.
• Civil and installation works: Often around 15 % of equipment cost.
• Utility installation (electricity, water, dust extraction): ~10 % of equipment cost.
• Labour and operating costs: Example – 20 operators for 24/7 operation, wage costs USD 300,000/year.
• Maintenance & spares: Typically 3–5 % of equipment cost annually.

Then compute ROI: Suppose annual net profit after all expenses is USD 200,000 and total investment is USD 1,000,000 → payback period ~5 years, ROI ~20 % annually.

For tool transparency:

• Define unit cost per ton of flour (e.g., USD 120/ton for combined fixed + variable cost).
• Benchmark extraction and yield metrics: extraction ≥ 70 %; off-spec loss ≤ 2 %.
• Sensitivity scenarios: If energy cost increases by 10 %, expect operating cost per ton to rise ~2 %.

Explore our turnkey corn flour mill project report template and let us assist you with detailed ROI modelling.

Corn Milling Plant Project Engineering Implementation And Delivery Management

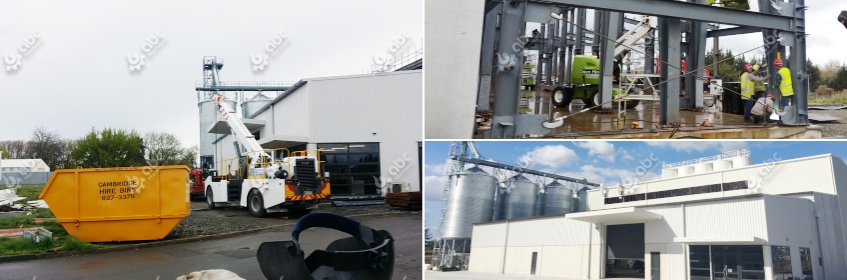

A Maize Flour Mill Project Construction Process Image

In this phase, we transition from planning to execution—covering turnkey corn mill installation, commissioning and ongoing project management. A clear schedule supports timely delivery and mitigates risks.

Typical timeline: 0-3 months planning, 4-9 months construction and equipment installation, 10-12 months commissioning and ramp-up. It is important to monitor key milestones every 4 weeks, apply corrective actions within 2 weeks of any delay to maintain schedule integrity.

During installation and commissioning, ensure checking of performance metrics: extraction rate, energy consumption, product fineness, and uptime. The commissioning service should include training of operations staff (e.g., 40 hours of training per shift team) and production of standard operating procedures (SOPs). The transition from commissioning to full operation must be under a warranty-backed support period of at least 12 months.

Finally, the hand-over package should include documentation of as-built drawings, equipment warranties, spare parts list, and a performance guarantee (e.g., extraction ≥ 70 % at ≤ 28 kWh/ton). Partner with us to ensure your corn mill installation meets schedule, budget and performance targets.

In conclusion, this comprehensive report addresses the corn mill investment from concept through delivery, leveraging the corn flour mill project report approach to guide investors, plant designers, project engineers and procurement teams toward an optimized, cost-effective and high-performing corn flour milling facility.
